Description

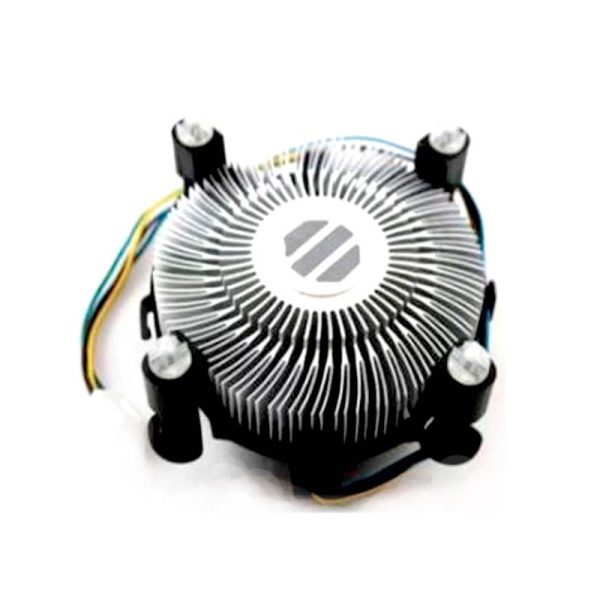

✅ Intel Stock CPU Cooler for LGA 775 / 1155 / 1156 – Specifications
🔧 Compatibility (Socket Support):
LGA 775 (Pentium 4, Pentium D, Core 2 Duo/Quad, etc.)
LGA 1155 (2nd Gen Intel Core – Sandy Bridge)
LGA 1156 (1st Gen Intel Core – Lynnfield, Clarkdale)
🌡️ Thermal Design:
Designed to support CPUs with a TDP (Thermal Design Power) of up to 95W (some variants support up to 65W only)
Comes with pre-applied thermal paste at the base
💨 Fan Specs:
Dimensions: ~92mm fan diameter (varies slightly)
Fan Speed: ~1800 – 2500 RPM (depending on CPU temperature & model)
Airflow: ~25–35 CFM
Bearing Type: Sleeve or Rifle bearing (varies by version)
Noise Level: ~22 – 36 dBA (depending on load)
🔌 Connector:
4-pin PWM (Pulse Width Modulation) connector
Supports automatic fan speed control via motherboard BIOS
🧊 Heatsink Material:
Aluminum Fins with radial design
Copper core in higher-end versions (for better heat transfer)
⚙️ Mounting Mechanism:
Push-pin mounting system (tool-free)
Can be reused if pins are not damaged
